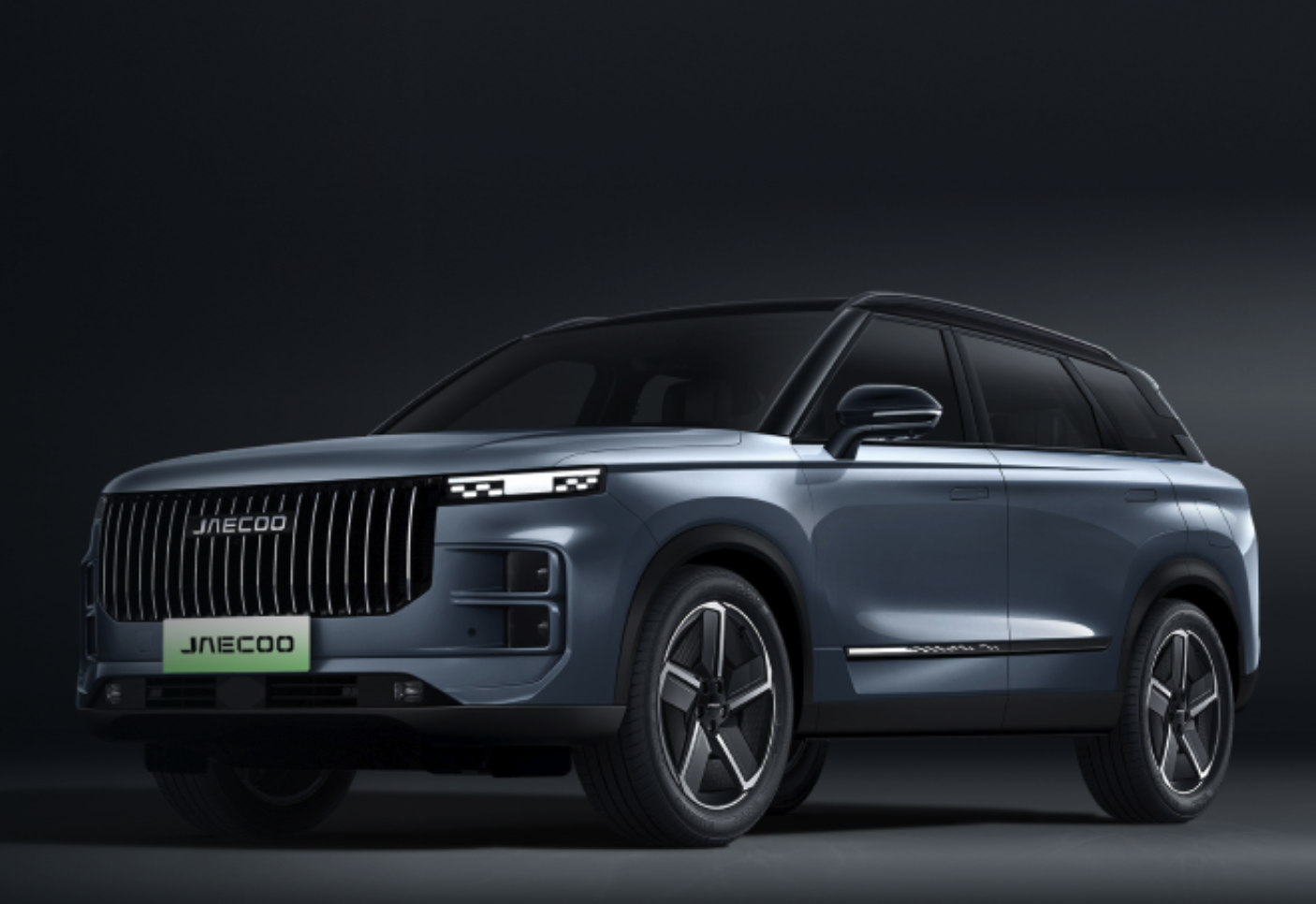

JAECOO 5 ESTATE

Emissions - ICE

• HC+NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  EURO 6
• WLTP - CO2 (g/km) - Comb
  159

Engine and Drive Train

• Camshaft
  DOHC
• Catalytic Convertor
  Yes
• CC
  1598
• Compression Ratio
  9.9:1
• Cylinder Layout
  IN-LINE
• Cylinders
  4
• Cylinders - Bore (mm)
  77
• Cylinders - Stroke (mm)
  85.8
• Engine Layout
  FRONT TRANSVERSE
• Fuel Delivery
  TURBO DIRECT INJECTION
• Gears
  7 SPEED
• Number of Valves
  16
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Directive 1999/100/EC Applies
  No
• WLTP - FC (l/100km) - Comb
  7
• WLTP - FC (l/100km) - Extra High
  7.4
• WLTP - FC (l/100km) - High
  6
• WLTP - FC (l/100km) - Low
  8.8
• WLTP - FC (l/100km) - Medium
  6.7
• WLTP - MPG - Comb
  40.4
• WLTP - MPG - Extra High
  38.2
• WLTP - MPG - High
  47.1
• WLTP - MPG - Low
  32.1
• WLTP - MPG - Medium
  42.2

General

• Alternative Fuel Qualifying
  No
• Badge Engine CC
  1.6
• Badge Power
  140
• Based On ID
  Not Available
• Coin Description
  T
• Coin Series
  Pure
• Insurance Group 1 - 50 Effective January 07
  25D
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Service Interval Frequency - Months
  12
• Service Interval Mileage
  10000
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  100000
• Standard manufacturers warranty - Years
  7
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  10.2
• Engine Power - BHP
  140
• Engine Power - KW
  105
• Engine Torque - LBS.FT
  203
• Engine Torque - MKG
  28
• Engine Torque - NM
  275
• Top Speed
  113

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  RDE 2

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  235/55 R18
• Tyre Size Rear
  235/55 R18
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  Not Available
• Wheel Type
  18" ALLOY

Vehicle Dimensions

• Height
  1650
• Height (including roof rails)
  Not Available
• Length
  4380
• Wheelbase
  2620
• Width
  1860

Weight and Capacities

• Gross Vehicle Weight
  1821
• Luggage Capacity (Seats Down)
  1180
• Luggage Capacity (Seats Up)
  480
• Max. Loading Weight
  375
• Minimum Kerbweight
  1446
• No. of Seats
  5
