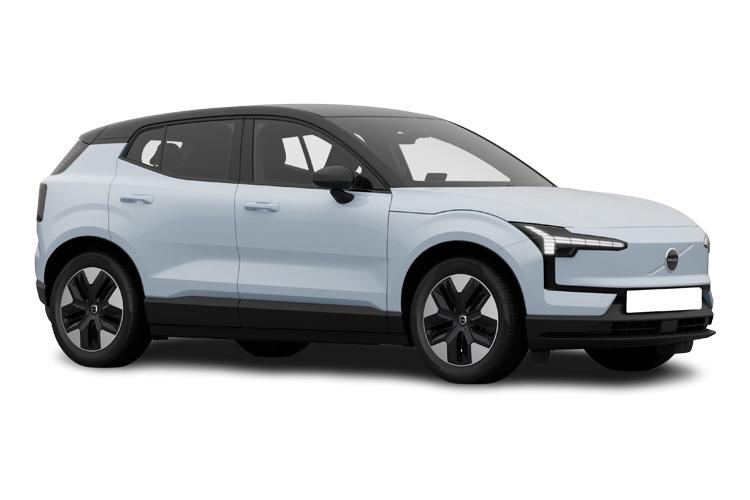

VOLVO EX30 ESTATE

Electric Vehicle Data

• Battery Capacity % guaranteed under warranty
  Not Available
• Battery Capacity in kWh
  69
• Battery Charging Scenario 1 - Charge Time (Mins)
  2340
• Battery Charging Scenario 1 - Percentage Change
  0-100
• Battery Charging Scenario 1 - Power Supply - kW
  2.4
• Battery Charging Scenario 2 - Charge Time (Mins)
  1380
• Battery Charging Scenario 2 - Percentage Change
  0-100
• Battery Charging Scenario 2 - Power Supply - kW
  3.8
• Battery Charging Scenario 3 - Charge Time (Mins)
  660
• Battery Charging Scenario 3 - Percentage Change
  0-100
• Battery Charging Scenario 3 - Power Supply - kW
  7.6
• Battery Charging Scenario 4 - Charge Time (Mins)
  28
• Battery Charging Scenario 4 - Percentage Change
  10-80
• Battery Charging Scenario 4 - Power Supply - kW
  153
• Battery Leased
  No
• Battery Type
  Lithium-ion
• Charging Port Location
  Left Side Rear
• Coupler/Connector Type
  CCS Type 2
• Maximum Charging Rate - kW
  153
• Standard manufacturers Battery warranty - Mileage
  100000
• Standard manufacturers Battery warranty - Years
  8
• Usable Battery Capacity
  65
• WLTP - EC (kWh/100km) - Comb - TEH
  17.5
• WLTP - EC (kWh/100km) - Comb - TEL
  17
• WLTP - EC (miles/kWh) - Comb - TEH
  3.6
• WLTP - EC (miles/kWh) - Comb - TEL
  3.7
• WLTP - Pure Electric Range (km) - Comb
  475
• WLTP - Pure Electric Range (km) - Comb - TEH
  462
• WLTP - Pure Electric Range (km) - Comb - TEL
  475
• WLTP - Pure Electric Range (miles) - Comb
  295.2
• WLTP - Pure Electric Range (miles) - Comb - TEH
  287.1
• WLTP - Pure Electric Range (miles) - Comb - TEL
  295.2

Emissions - ICE

• CO
  Not Available
• CO2 (g/km)
  0
• HC
  Not Available
• HC+NOx
  Not Available
• Noise Level dB(A)
  Not Available
• NOx
  Not Available
• Particles
  Not Available
• Standard Emissions
  Not Available

Engine and Drive Train

• Camshaft
  Not Available
• Catalytic Convertor
  Not Available
• CC
  1
• Compression Ratio
  Not Available
• Cylinder Layout
  Not Available
• Cylinders
  Not Available
• Cylinders - Bore (mm)
  Not Available
• Cylinders - Stroke (mm)
  Not Available
• Engine Code
  Not Available
• Engine Layout
  Not Available
• Fuel Delivery
  Not Available
• Gears
  1 SPEED
• Number of Valves
  Not Available
• Transmission
  AUTO

Fuel Consumption - ICE

• EC Combined (mpg)
  Not Available
• EC Directive 1999/100/EC Applies
  No
• EC Extra Urban (mpg)
  Not Available
• EC Urban (mpg)
  Not Available

General

• Alternative Fuel Qualifying
  Yes
• Badge Engine CC
• Badge Power
  272
• Based On ID
  Not Available
• Coin Description
  200kW P5 Long Range
• Coin Series
  Plus [NI]
• Generation Mark
  1
• Manufacturers Corrosion Perforation Guarantee - Years
  12
• Manufacturers Paintwork Guarantee - Years
  3
• Did at least one aspect of this vehicle's safety give cause for concern?
  No
• Special Edition
  No
• Special Order
  No
• Standard manufacturers warranty - Mileage
  60000
• Standard manufacturers warranty - Years
  3
• Vehicle Homologation Class
  M1

Performance

• 0 to 62 mph (secs)
  5.3
• Engine Power - BHP
  272
• Engine Power - KW
  200
• Engine Torque - LBS.FT
  253
• Engine Torque - MKG
  35
• Engine Torque - NM
  343
• Top Speed
  112

Test Cycles

• Emissions Test Cycle
  WLTP
• RDE Certification Level
  N/A

Tyres

• Alloys?
  Yes
• Space Saver?
  No
• Tyre Size Front
  245/45 R19
• Tyre Size Rear
  245/45 R19
• Tyre Size Spare
  TYRE REPAIR KIT
• Wheel Style
  5 SPOKE
• Wheel Type
  19" ALLOY

Vehicle Dimensions

• Height
  1555
• Height (including roof rails)
  Not Available
• Length
  4233
• Wheelbase
  2650
• Width
  1940
• Width (including mirrors)
  2032

Weight and Capacities

• Fuel Tank Capacity (Litres)
  Not Available
• Gross Vehicle Weight
  2240
• Luggage Capacity (Seats Down)
  1000
• Luggage Capacity (Seats Up)
  318
• Max. Loading Weight
  465
• Max. Roof Load
  75
• Max. Towing Weight - Braked
  1600
• Max. Towing Weight - Unbraked
  750
• Minimum Kerbweight
  1775
• No. of Seats
  5
• Turning Circle - Kerb to Kerb
  10.7
